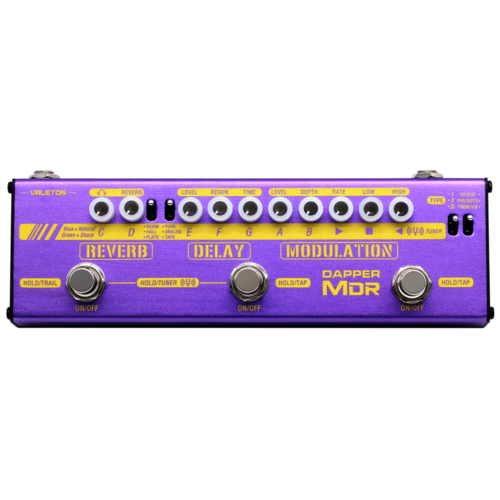

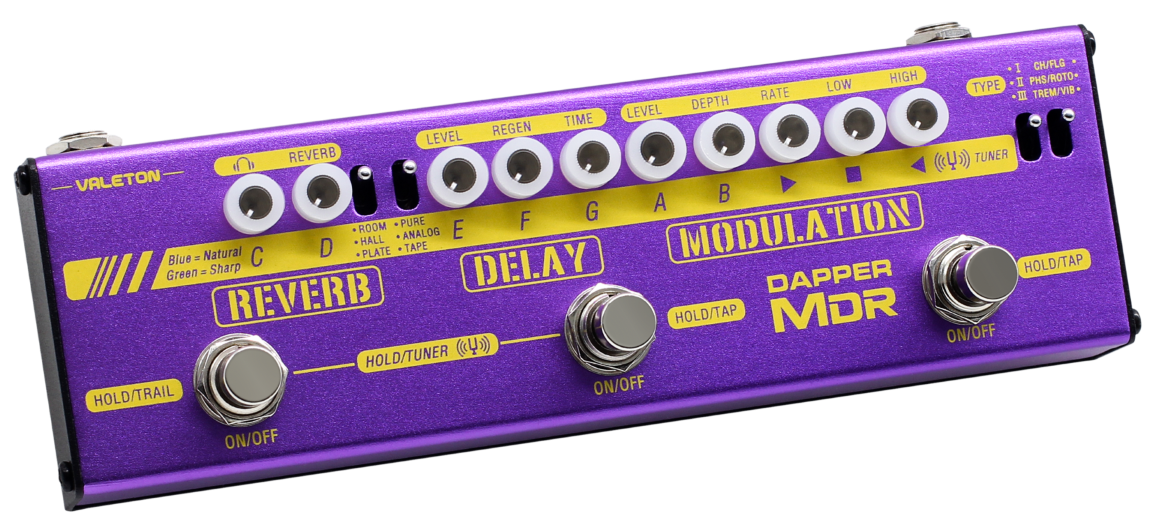

Valeton Dapper MDR Mod/Delay/Reverb Effects Strip

Dapper MDR is your ambient station. Combining modulation, delay and reverb effects in one, this all-in-one mini effects strip has everything you need.

The Dapper series by Valeton are a strip style multi-effects pedal unit perfect for a wide range of styles and genres built with rugged casing and essential effects and features. The Dapper effects strips can compliment existing pedal boards and will take up a small amount of real estate on them or will also work perfectly as a standalone unit and will fit into your gig bag or hand luggage for fly-gigs.

The Dapper MDR features all the essential effects and features that a guitarist will need including a built-in tuner, modulation block (with 9 high quality modulation effects), delay block (with 3 fine-tuned delay effects), reverb, tap tempo, switchable effect trail and headphone output.

FEATURES:

● TUNER module with fast, accurate tuning

● MODULATION module with 9 high quality modulation effects in one

● DELAY module with 3 fine-tuned delay effects ranging from vintage to modern

● Classic-voiced, 3-mode REVERB module with natural, clear decay

● Tap Tempo function for MODULATION and DELAY modules

● Switchable effect trail

● PHONES output for practicing

MODULATION MODELS LIST*

TYPE		DESCRIPTION	LOW	HIGH
CH/FLG	I	Producing a warm, lush triangle wave chorus effect	±10dB @ 110Hz	±10dB @ 3.5kHz
	II	Simulates the vintage chorus sound from a famous jazz-combo amp	±9dB @ 470Hz	±9dB @ 4.25kHz
	III	Producing a classic flanging effect	±9dB @ 470Hz	±10dB @ 5.5kHz
PHS/ROTO	I	Based on MXR® Phase 90	±8dB @ 315Hz	±9dB @ 2.3kHz
	II	Based on a legendary 2-knob green phaser	±8dB @ 315Hz	±9dB @ 3kHz
	III	Based on Shin-Ei® Uni-Vibe®	±11dB @ 320Hz	±10dB @ 6kHz
TREM/VIB	I	Produces a warm tube tremolo sound inspired by American amps	±12dB @ 315Hz	±9dB @ 3.2kHz
	II	Based on Demeter® Tremulator®	±12dB @ 240Hz	±9dB @ 3.2kHz
	III	Based on the legendary BBD-based blue vibrato pedal	±11dB @ 320Hz	±10dB @ 6kHz

*The mentioned manufacturers and product names in the list are trademarks or registered trademarks of their respective owners. The trademarks were used merely to identify the sound character of this product.

DELAY MODELS LIST

TYPE	DESCRIPTION
PURE	Produces a pure, accurate delay tone
ANALOG	Produces a warm, vintage delay tone
TAPE	Simulates the echo tone from a tape machine

REVERB MODELS LIST

TYPE	DESCRIPTION
ROOM	Simulates the acoustics of a room
HALL	Simulates the acoustics of a hall
PLATE	Simulates a plate reverbrator

Specifications:

Power: 9V DC center negative
Current Consumption: 150mA
Dimensions: 197mm(D) × 65mm(W) × 42mm(H)
Weight: 417g
Delay Time Range: 25ms-2000ms
Input Impedance: 1MΩ
Output Impedance: 1kΩ

(VAL-MES-5)
